Introduction

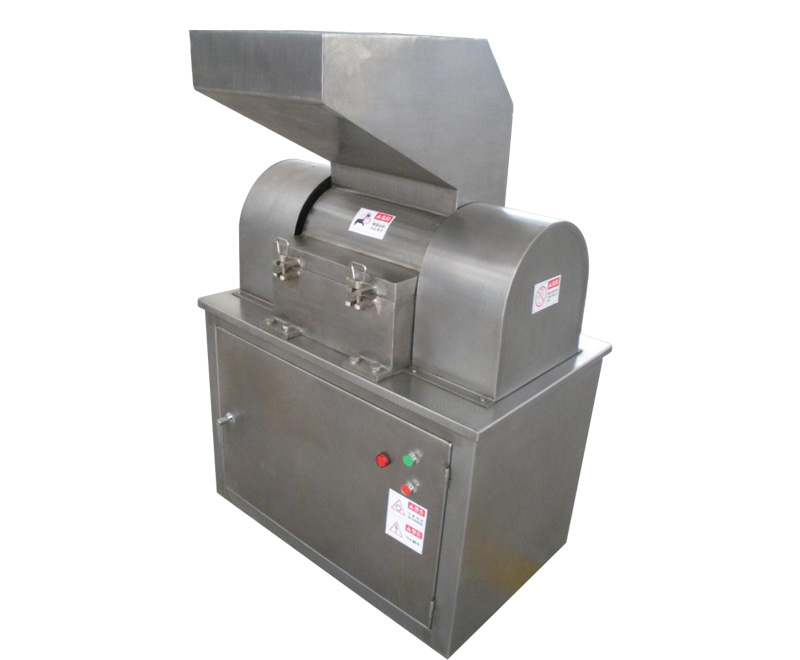

Spice coarse crusher introduction
1.This machine is suitable for pharmaceutical , chemical , food and other industries ,
2.It is the before procedure of fine grinding equipment.
3.It is not influenced by the material viscosity, hardness, softness, and fiber and other restrictions, any material can play better crushing effect.
Features of Tumeric Spices Crushing Machine
This tumeric grinding machine is a horizontal grinding structure, material from the hopper into the crushing chamber , the use of the impact of the rotating knife and fixed knife , cut and crushed , and the role of the centrifugal force , the material automatically flow to the exit . The equipment according to “GMP” standard design, the whole machine is made of stainless steel, simple structure, easy to clean, low noise, is the most ideal machine of coarse-crush.
Spice Coarse Crusher Working Video:
Technical Parameter
| Items | BCSJ-80 | BCSJ-120 | BCSJ-200 | BCSJ-300 |
| capacity（kg/h) | 10-100 | 50-300 | 100-400 | 150-500 |
| Inlet size（mm） | ≤50 | ≤100 | ≤100 | ≤100 |
| Outlet size（mm） | 1-20 | 1-20 | 1-20 | 1-20 |
| RPM（r/min） | 1400 | 1400 | 1400 | 1400 |
| power（kw） | 1.5 | 3 | 4 | 5.5 |
| Dimension（mm） | 600×500×950 | 700×800×1100 | 880×900×1250 | 1150*960*1700 |
| weight（kg） | 80 | 150 | 180 | 250 |
