Introduction
Introduction:

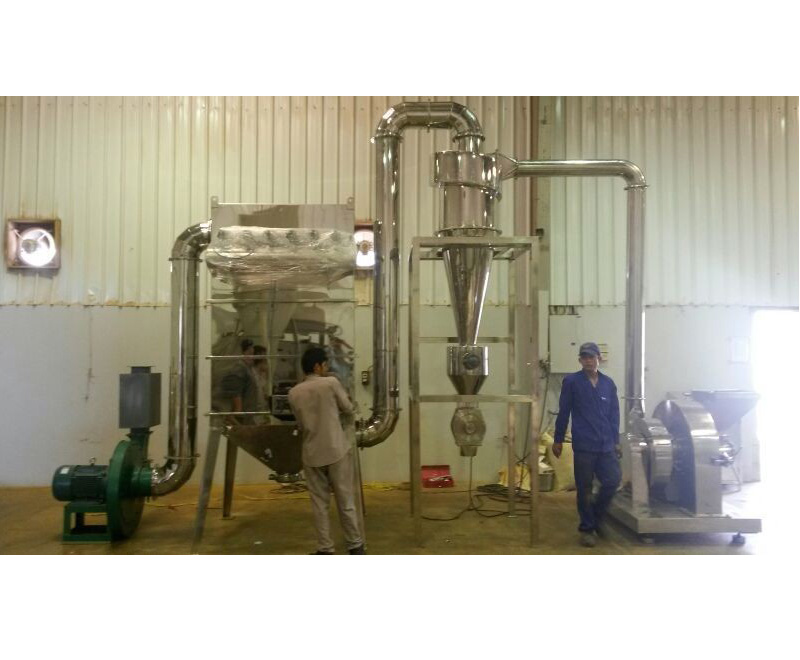

This self-suction type BKFL-700 complete set spice gridning machine is an efficient mill for food, spices, grains, etc., Crushing and grading of split materials, and independent operation. The machine has a full-featured , compact structure , stable technical performance , power consumption province , a wide range of application , fineness adjustable , easy maintenance, and other characteristics , all the process after feeding to the finished product is carried out in the same closed system , with the dust removal processing , no pollution to environmental, it is an ideal machine for food industry and GMP standards.
Main Structures:
By hopper , crushing system ,fan blade device , suction dust removal system and the induced draft system, driving device composed of grinding chamber, hopper , crushing blade , gear ring , sieve , fan blade , discharging by suction pipeline , cyclone , air clock , dust filter bag , induced draft fan and so on .
Spice Grinder Working Video:
Technical Parameter
Spice Grinding Machine Complete Set
Capacity: around 500 kg/h at 380 micron for spices
Inlet size:≤10mm
Grinding degree: fine grinding
Outlet mesh size: 10-120 mesh (adjustable by sieve)
Spindle RPM: 0-3050r/min
Main Motor: 30KW
Induced air fan power: 15KW
Discharger power: 1.5KW
Voltage: 380V, 3 phases, 50HZ
Material: High Quality of SUS304 with assurance of thickness and enduring use.
